Products
MS serial general en masse conveyor
Special high-temperature en masse conveyor for waste heat boiler
The special high-temperature en masse conveyor for waste heat boiler is specific to the waste heat boiler of metallurgy, building materials, chemical industry, etc. it is our own research and development of conveyor.
SMS serial en masse conveyor for bulk grain
SMS serial horizontal en masse conveyor for bulk grain is eight size, the maximum width is up to 1000mm; the maximum capacity is 1250t/h；the maximum conveying distance is 100m; the speed of chain scraper is up to 1.1m/s；The conveyor can be arranged to feed or discharge at one or more openings.
MSR type high temperature material en masse conveyor
MSR series thermal material conveyor is dedicated horizontal en masse conveyor specially designed for conveying high temperature materials. It stands in the international level, adopt hot strong steel to make main components and water cooling system, it can convey materials temperature up to 650℃,the droop head or limit weight tension tail will be adopt to compensate the thermal elongation of scraper chain. It can be widely used to convey sulfur slag, lead and zinc dust, soot, copper smelting smoke and other high temperature and high mill cut materials in metallurgy, building materials and chemical industries. it have 8 machine sizes, the machine width is up to 800mm; the maximum capacity is up to 60 m³/h; the maximum conveying distance is 80 meters; the maximum inclination angle is up to 10°. It can feed and discharge at more points. The main technical parameters are shown in the table below.
TD type belt bucket elevator
TD series bucket elevator have four kind of buckets , Q type (light bucket), H type (arc bottom bucket), Zd type (middle deep bucket) and Sd type (deep bucket) and so on, they are suitable for conveying various materials, you can choose suitable hopper according to material features.
GTZD type belt bucket elevator
GTZD series silo special bucket elevator has nine sizes, the belt width is up to 1200 mm; the maximum capacity is up to 800 t/h; The max elevating height is up to 65 m; the speed can be up to 3.94 m/s; the series bucket elevators have a expansion section and adjusting section, adopt floating connection between drive arrangement and the mainframe, have superiority in solving tail synchronous tension and preventing belt running deviation. The safety device generally have bake stop device, speed sensors, choke detector, protective device against side running of belt.. Its main technical parameters are shown in the table.
Wire rope core belt bucket elevator
The traction component of TDG hoist adopts high-strength steel wire rope core rubber belt, which overcomes the dynamic load generated by the chain and drive, is lighter than the chain, works more smoothly, and can achieve higher productivity at a faster speed. Under the same production conditions , The tape should have high working speed and light weight, which can reduce the line load of the material and the line load of the traction member, thereby reducing the size and weight of the whole machine. At the same time, because the tape has good elasticity and flexibility, it has a damping effect when the hopper is loaded. Due to the use of high-strength steel wire rope core tape, the lifting height and conveying of the hoist can be greatly improved, so the product has a good development prospect.
Heavy-Duty Flake Feeder
The phosphorus plate feeder drives the chain to run by driving, and drags the chain plate to make continuous linear motion to complete the purpose of conveying materials. Phosphorus plate feeders are widely used in mining, metallurgy, building materials and coal industries. This machine is mainly used under the silo and hopper with a certain silo pressure to transport all kinds of large bulk density materials evenly and continuously in a short distance to the secondary crushing, screening and transportation equipment, especially it is more suitable for use below the primary crushing. It is not only suitable for handling coarse-grained materials, but also for fine-grained materials. It can complete heavy work in harsh environments, and has great adaptability to changes in particle size and composition of materials, temperature, viscosity, frost, rain and snow or frozen materials. The feeding amount is even and accurate, but reliable. The machine can be installed horizontally or obliquely. The maximum inclination angle for upward transportation is 23º. It is widely used in non-ferrous, mining, cement, fertilizer, chemical, metallurgy, papermaking and other industries in the process of mining, light transportation, batching, etc. Evenly distribute bulk materials with a capacity of not more than 1.2t/m3, a block weight of more than 140kg, and a temperature of not higher than 350 degrees Celsius.
Medium Flake Feeder
The phosphorus plate feeder drives the chain to run by driving, and drags the chain plate to make continuous linear motion to complete the purpose of conveying materials. Phosphorus plate feeders are widely used in mining, metallurgy, building materials and coal industries. This machine is mainly used under the silo and hopper with a certain silo pressure to transport all kinds of large bulk density materials evenly and continuously in a short distance to the secondary crushing, screening and transportation equipment, especially it is more suitable for use below the primary crushing. It is not only suitable for handling coarse-grained materials, but also for fine-grained materials. It can complete heavy work in harsh environments, and has great adaptability to changes in particle size and composition of materials, temperature, viscosity, frost, rain and snow or frozen materials. The feeding amount is even and accurate, but reliable. The machine can be installed horizontally or obliquely. The maximum inclination angle for upward transportation is 23º. It is widely used in non-ferrous, mining, cement, fertilizer, chemical, metallurgy, papermaking and other industries in the process of mining, light transportation, batching, etc. Evenly distribute bulk materials with a capacity of not more than 1.2t/m3, a block weight of more than 140kg, and a temperature of not higher than 350 degrees Celsius.
LS serial screw conveyor
LS type screw conveyor adopt ISO01050 standard to design and manufacture, and accord with professional standard ZBJ81005.1¡288. The conveyor structure is very innovative, the head and tail bearing install outside the casing; the middle hanger bearing have two interchangeable structure, rolling and sliding with dust-proof sealing arrangement; the discharge end is equipped with cleaning device; the inlet and outlet can be arranged flexibly; low noise, strong adaptability, convenient operation and maintenance. The conveyors adopt nylon and polyflon as sealing arrangement with small resistance and seal wear-resisting. The materials of sliding bearings have casting copper, alloy wear resistant cast iron, canister cornerstone ink less oil lubrication.
WLS shaftless screw conveyor
The WLS shaftless screw conveyor is our company to develop new products, it concisits of by the drive device, shaftless spiral blade, u-shaped casing, wearing plate, over etc. Is mainly used in chemical, food, medicine, paper industry, such as beverage, environmental protection industry strong adhesive material, paste, viscous material (such as chemical raw materials, waste paper pulp, malt, sludge, etc.) and easy winding material (household waste), has a unique advantage. Shaftless screw conveyor is compared with the general screw conveyor, with no central axis design, using the overall steel spiral push with a flexible material, thus has the following advantages:
LLS double shaft screw conveyor
The biaxial screw conveyor complete delivery material by two symmetrical shaped screw axis synchronous views, consists of casing, the spin screw axis, drive device, gear, bearing, bearing part, chain cover and so on. it has novel structure, long work life.
TD75 type fixed belt conveyor
TD75 type general fixed belt conveyor (hereinafter referred as TD75) is widely used for conveying bulk materials or items in metallurgy, coal, transportation, textile, hydropower and other departments for its large capacity, simple structure, convenient maintenance, low cost, strong commonality .According to the requirement of the conveying process, it can be simple conveying, can also combine with other conveyor to form horizontal or inclined conveyor system.
DTII type fixed belt conveyor
DTII type fixed belt conveyor is general type series products, which can be widely used in metallurgy, mining, coal, and port, power station, building materials, chemical industry, light industry, petroleum and other industries. According to the requirement of the conveying process, can be single delivery, can also be more than one or with other conveyors to form horizontal or inclined conveyor system. The available transport bulk materials and items bulk density is 0.5 ~ 2.5 t/m3.
DJ type corrugated and sidewall belt conveyor
DJ series corrugated sidewall belt conveyor adopt conveyor belt with corrugated and sidewall, the sidewall, diaphragm plate and basebelt form the “box” form container, suitable for large angle coveying (the angle up to 90¡). It can be used to convey bulk material in power stations, chemical industry, metallurgy, mining, coal, ports, building materials and light industry. It can be single coveying, be more than one, or combined with other conveying machine to form horizontal or inclined conveying system. DJ series corrugated sidewall belt conveyor can run in temperature from +40℃ to -10℃ £the available temperature of material must below 50¡£loose density between 0.5 to 2.5t/m3. The main technical parameters are shown in the table.
GY typerotary feeder(also called star feeder or electric lock)
GY type rotary feeder is used to dry powder or small particles in the upper bin feed the material continuously and evenly to the next equipment. This machine is suitable for thermal power plant dust collector, air preheater and economizer equipment discharging mouth or dry ash conveying pipe, air lock and uniform feeding. Can also be used for chemical plants, cement plants, food and other departments of the pneumatic conveying system.
Chain bucket conveyor
SDBF series chain bucket conveyor is an independent design for continuous conveying upon absorbing forging advanced technology, suitable for conveying power and block bulk material on horizontal or inclined( angle less than 60°)， such as cement, power plant ash, metallurgical raw materials and ash, sand, limestone, coke, etc.. The heat resistance and reliability are better than apron conveyor, belt conveyor, and vibrating conveyor, etc, the conveying length is up to about 150m and save electrcity is above 50% than conveyor. The conveyor has excellent environmental performance as full sealed structure. It cab be widely used in building industry, coal industry, chemical industry, electric power, etc.
Tooth chip crusher
The tooth chip crusher is suitable to crush the materials, such as easy to agglomerate after moisture absorption, harden,and small block material required to control the material particle size, especially a kind of alkali recovery system suitable for light alkali papermaking industry boiler alkaline ash broken and charging system of glauber's salt glauber's salt storehousebroken.
Double-layer pneumatic (electric) flap valve
The valve, gate structure is compact, flexible working, use and reliable, easy to operate, used in the opening and closing and the reversing in the process of conveying.
Electric (manual) flat gate
The valve, gate structure is compact, flexible working, use and reliable, easy to operate, used in the opening and closing and the reversing in the process of conveying.
Three-vent (electric) valve
The valve, gate structure is compact, flexible working, use and reliable, easy to operate, used in the opening and closing and the reversing in the process of conveying.
Throwing machine
Throwing machine is a commonly used equipment in the field of non-ferrous metal pyrometallurgy. The throwing machine is installed next to the feeding port of the roasting furnace, so that the materials discharged from the material distributor, such as concentrate powder and other similar fine powder and small granular materials, are thrown into the roasting furnace or other equipment at a high speed, so that the roasting furnace or the Other equipment can roast the material better.
Super-wide special scraper conveyor for electrostatic precipitator
Super-wide scraper conveyor for electrostatic precipitator is used to handle the ash in the electrostatic precipitators, it consist of the drive arrangement, head assembly, scraper chain, steady flow device, tail assembly and so on. The conveyor use plate sleeve roller chain to be traction member, the scraper is fixed to the sleeve roller chain plate,the power input to the head device by the open chain, the head wheel is driven by the head shaft then drive the scraper chain to convey materials. The conveyor has scraper chain tension and onti-meandening device,main electrical protective device. The conveyor has wind steady flow device on the top of conveyor in side of electrostatic precipitator which can stabilize the airflow .after ash falling down by gravity,it will be get together by the scraper then conveyed to next process by conveyor, so that can improve the collection efficiency and economic benefits, reduce environmental pollution. The conveyor is especially suitable for electrostatic precipitators change to be flat from cone warehouse, moisture caking dust conveying which easy to absorb, for example it can be used to ash collecting an conveying in light paper industry electrostatic precipitator
Over-flow screw conveyor
The overflow screw conveyor is a pipe type screw conveyor, include charging unit, steady flow unit and overflow unit welded on the fix shaft, the charging hopper weld on the spring casing and connect with it internal part, sealed chamber and spring case combine closely, the packing seal device weld on the sealed chamber, the screw case connect with discharge chamber with overflow vent, the baffle plate weld on the overflow vent, and the sealing device weld outside the baffle plate, the discharging vent opens upwards, and is equipped with the overflow pipe with certain height, the material flow out of overflow pipe by the spring blade extrusion from opposite direction. The overflow screw conveyor has good wind-proof performance.
Lightweight Flake Feeder
The phosphorus plate feeder drives the chain to run by driving, and drags the chain plate to make continuous linear motion to complete the purpose of conveying materials. Phosphorus plate feeders are widely used in mining, metallurgy, building materials and coal industries. This machine is mainly used under the silo and hopper with a certain silo pressure to transport all kinds of large bulk density materials evenly and continuously in a short distance to the secondary crushing, screening and transportation equipment, especially it is more suitable for use below the primary crushing. It is not only suitable for handling coarse-grained materials, but also for fine-grained materials. It can complete heavy work in harsh environments, and has great adaptability to changes in particle size and composition of materials, temperature, viscosity, frost, rain and snow or frozen materials. The feeding amount is even and accurate, but reliable. The machine can be installed horizontally or obliquely. The maximum inclination angle for upward transportation is 23º. It is widely used in non-ferrous, mining, cement, fertilizer, chemical, metallurgy, papermaking and other industries in the process of mining, light transportation, batching, etc. Evenly distribute bulk materials with a capacity of not more than 1.2t/m3, a block weight of more than 140kg, and a temperature of not higher than 350 degrees Celsius.
PE serial round jaw crusher
PE series jaw crusher crushing function of dealing with the compressive strength is no more than 250 mpa ore or rock, big crushing ratio, finished product advantages of uniform particle size, low power consumption, convenient maintenance. Is metallurgy, mining, building materials, transportation, machinery and other industries the ideal crushing equipment.
PCH serial round hammer crusher
PCH type ring hammer crusher is used for crushing various brittle materials, the material of the pressure strength less than 100 mpa, surface water is not more than 15% .

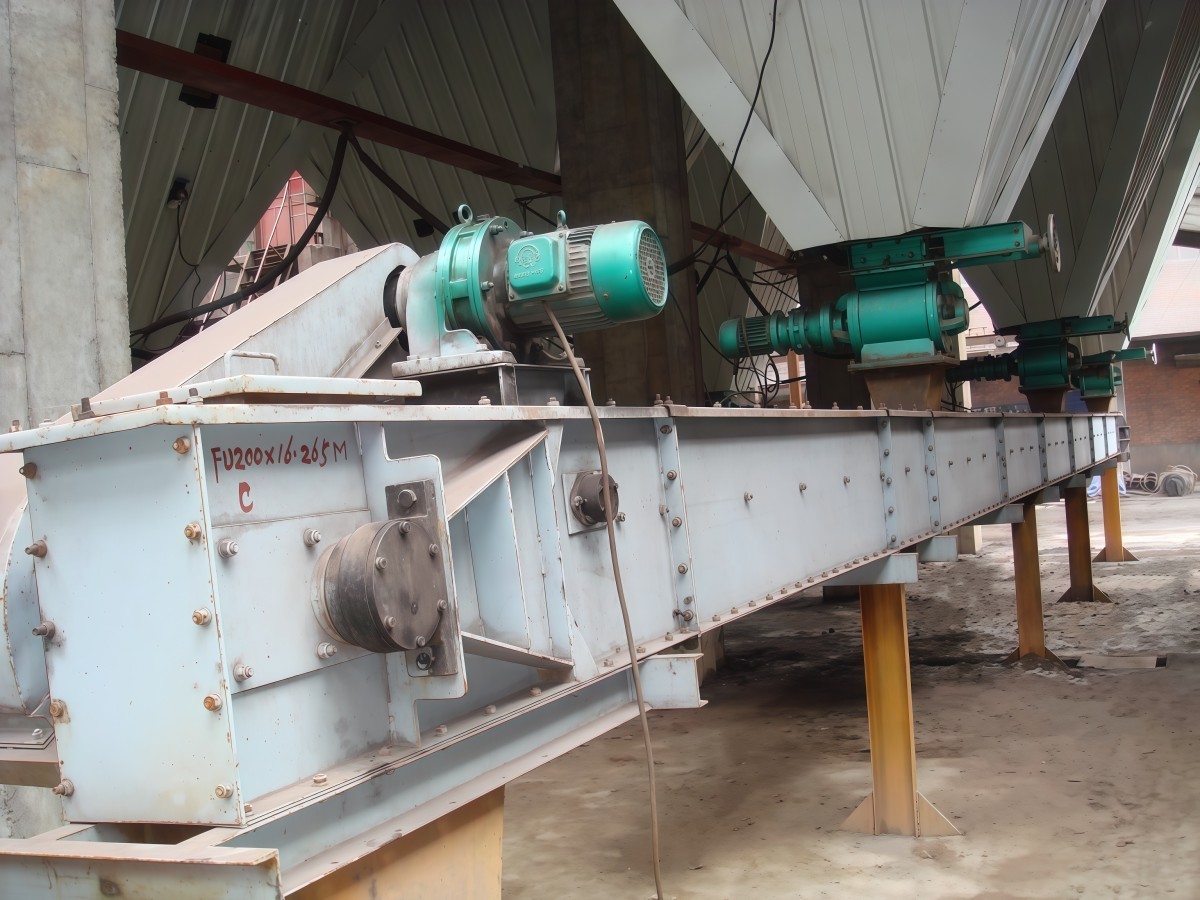

FU type chain conveyor
FU type chain scraper conveyor is a special form of en masse conveyor, applicable to convey flowing power, smallblock material on horizontal or micro inclined(α≤10°）,can be widely used in cement, grain, coal, metallurgy,
chemical industry, etc. This machine has compact structure, good sealing, and flexible process arrangement, can feed
and discharge at multi-points. It adopt plate roller chain as traction components, as rolling friction exist between
traction chain and guide friction, that can reduce running resistance of scraper chain, low consumption, scraper has
long life and can realize long-distance conveying (Lmax = 100 m) and large capacity (Qmax = 700 m³/ h).
TH type round link chain bucket elevator
TH series bucket elevator is the upgrading production of the HL series bucket elevator, compared with HL bucket elevator, it has large capacity, high elevating height and stable operation. Its main performance measures is up to the specification ofJB3926-89(verticalbucket elevator).
TB(NE) type plate chain bucket elevator
TB（NE）series plate chain bucket is the upgrading production of PL series bucket elevator, compared with PL series bucket elevator. It has small pitch, large capacity, high elevating height. Its main performance accord with the specifications of JB3926-89 (vertical bucket elevator).
MC serial general enmasse conveyor
Note: 1.All of the chain scraper adopt outgoing arrangement ,the chain scraper are not shown in the drawing.2.The driving end ,vertical casing.
bend casing and inlet section are A and B type.. when the B type driving end is selected, it must match the A type vertical casing and bend casing;
when the A type driving end is selected, it must match the B type vertical casing and bend casing; the inlet section will be arbitrary selection.
The type of selection as shown in the above drawing. 3.When the B type driving end is selected, the DO and GO type chain scraper can't be used.
Flake Feeder
The phosphorus plate feeder drives the chain to run by driving, and drags the chain plate to make continuous linear motion to complete the purpose of conveying materials. Phosphorus plate feeders are widely used in mining, metallurgy, building materials and coal industries. This machine is mainly used under the silo and hopper with a certain silo pressure to transport all kinds of large bulk density materials evenly and continuously in a short distance to the secondary crushing, screening and transportation equipment, especially it is more suitable for use below the primary crushing. It is not only suitable for handling coarse-grained materials, but also for fine-grained materials. It can complete heavy work in harsh environments, and has great adaptability to changes in particle size and composition of materials, temperature, viscosity, frost, rain and snow or frozen materials. The feeding amount is even and accurate, but reliable. The machine can be installed horizontally or obliquely. The maximum inclination angle for upward transportation is 23º. It is widely used in non-ferrous, mining, cement, fertilizer, chemical, metallurgy, papermaking and other industries in the process of mining, light transportation, batching, etc. Evenly distribute bulk materials with a capacity of not more than 1.2t/m3, a block weight of more than 140kg, and a temperature of not higher than 350 degrees Celsius.
SMC serial en masse conveyor for bulk grain
SMC series vertical en masse conveyor is designed specially for conveying bulk grain in the food industry.The maximum angle is up to 90° when it is inclined or vertical installation. There are six size, the maximum capacity of the conveyor is 350t/h，the maximum lifting height of the conveyor is 30m. The main technical parameters is as follows.
