Screw Conveyor

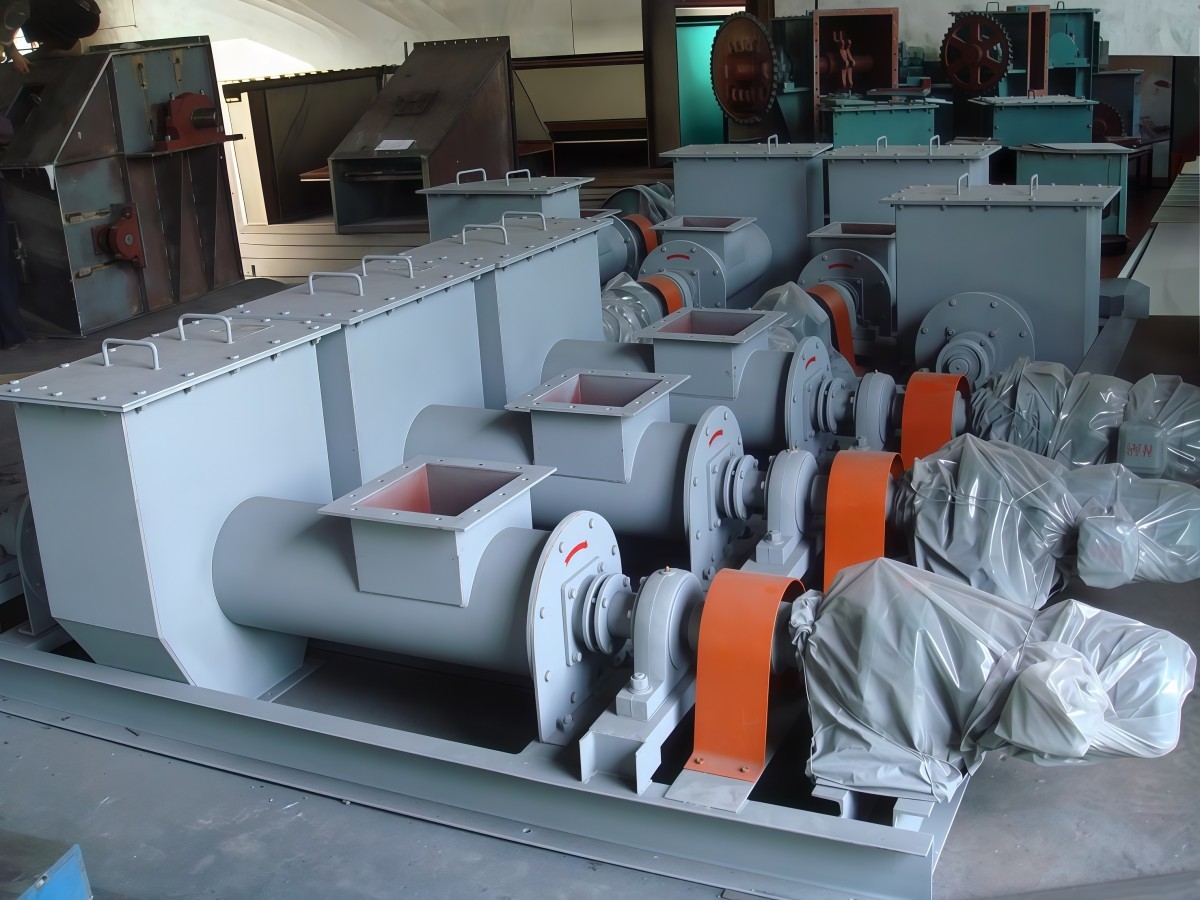

LS serial screw conveyor

LS type screw conveyor adopt ISO01050 standard to design and manufacture, and accord with professional standard ZBJ81005.1¡288. The conveyor structure is very innovative, the head and tail bearing install outside the casing; the middle hanger bearing have two interchangeable structure, rolling and sliding with dust-proof sealing arrangement; the discharge end is equipped with cleaning device; the inlet and outlet can be arranged flexibly; low noise, strong adaptability, convenient operation and maintenance. The conveyors adopt nylon and polyflon as sealing arrangement with small resistance and seal wear-resisting. The materials of sliding bearings have casting copper, alloy wear resistant cast iron, canister cornerstone ink less oil lubrication.

MORE

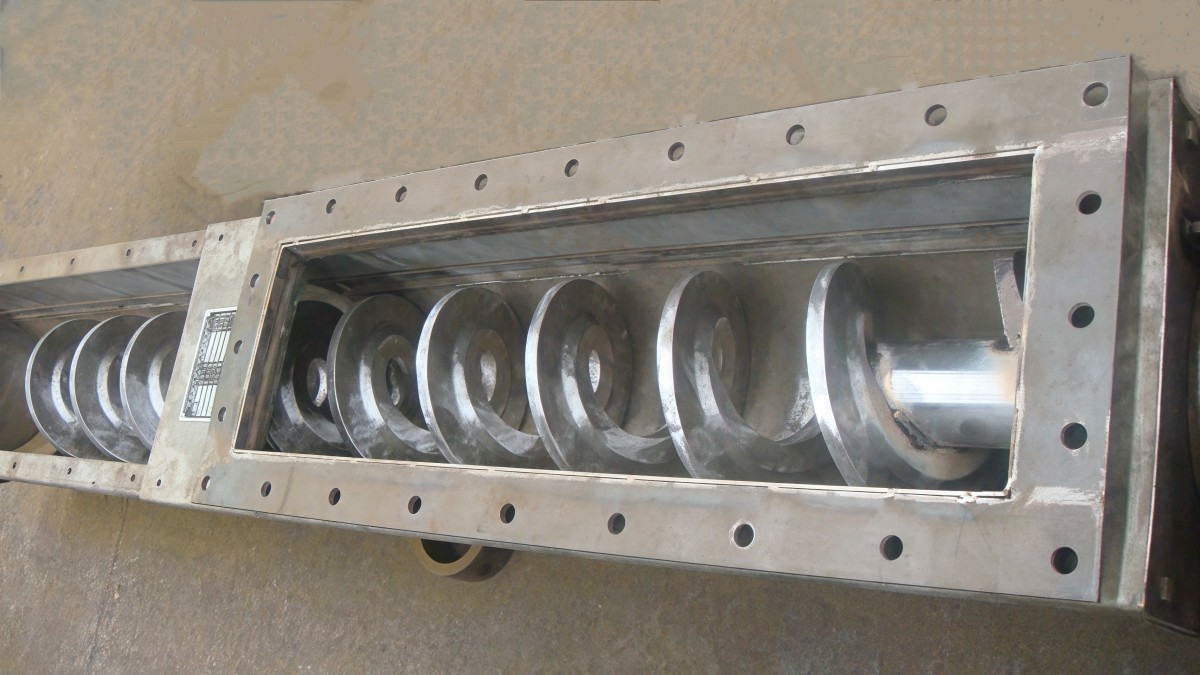

WLS shaftless screw conveyor

The WLS shaftless screw conveyor is our company to develop new products, it concisits of by the drive device, shaftless spiral blade, u-shaped casing, wearing plate, over etc. Is mainly used in chemical, food, medicine, paper industry, such as beverage, environmental protection industry strong adhesive material, paste, viscous material (such as chemical raw materials, waste paper pulp, malt, sludge, etc.) and easy winding material (household waste), has a unique advantage. Shaftless screw conveyor is compared with the general screw conveyor, with no central axis design, using the overall steel spiral push with a flexible material, thus has the following advantages:

MORE

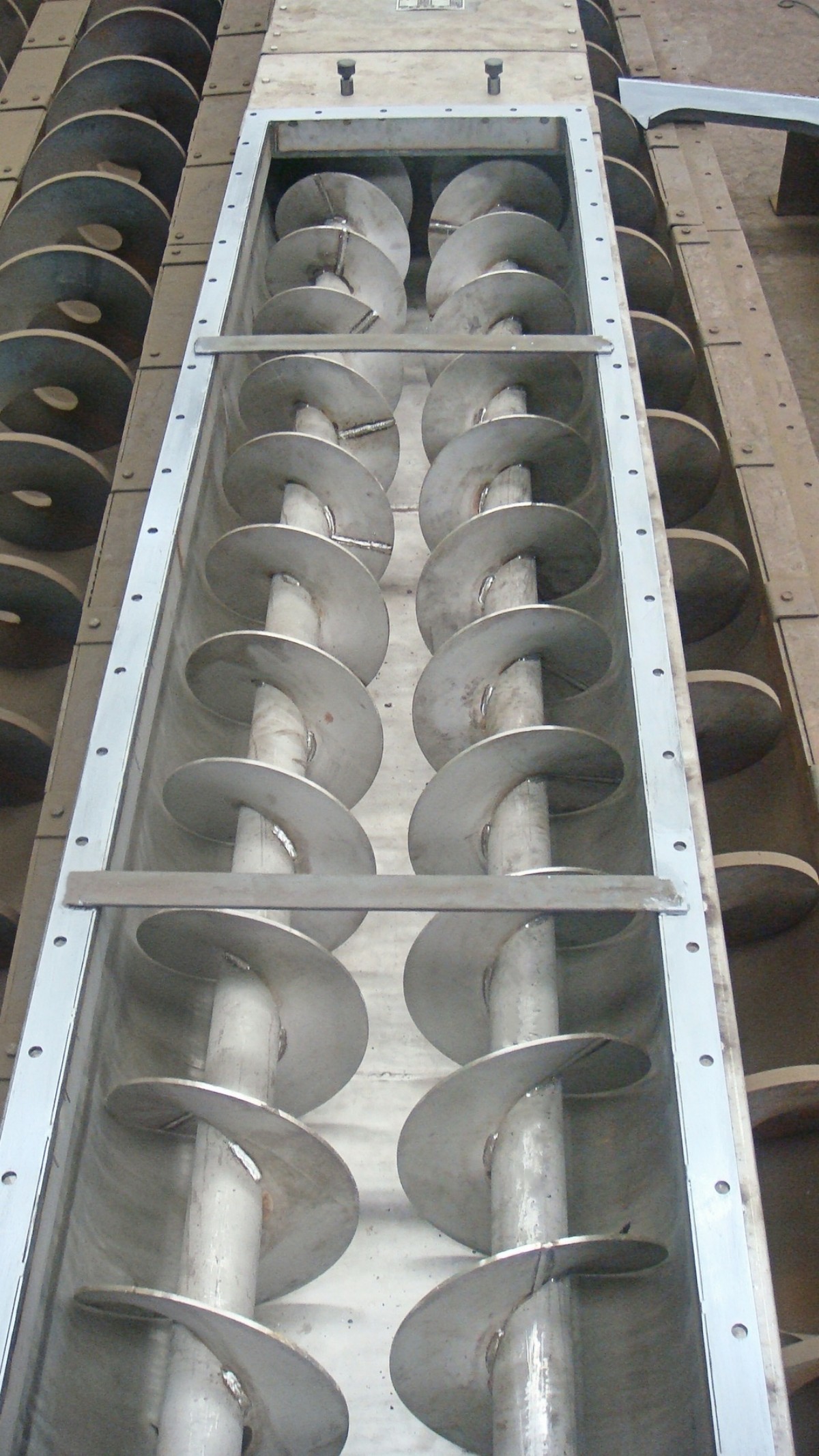

LLS double shaft screw conveyor

The biaxial screw conveyor complete delivery material by two symmetrical shaped screw axis synchronous views, consists of casing, the spin screw axis, drive device, gear, bearing, bearing part, chain cover and so on. it has novel structure, long work life.

MORE

Over-flow screw conveyor

The overflow screw conveyor is a pipe type screw conveyor, include charging unit, steady flow unit and overflow unit welded on the fix shaft, the charging hopper weld on the spring casing and connect with it internal part, sealed chamber and spring case combine closely, the packing seal device weld on the sealed chamber, the screw case connect with discharge chamber with overflow vent, the baffle plate weld on the overflow vent, and the sealing device weld outside the baffle plate, the discharging vent opens upwards, and is equipped with the overflow pipe with certain height, the material flow out of overflow pipe by the spring blade extrusion from opposite direction. The overflow screw conveyor has good wind-proof performance.

MORE
