Electric (manual) flat gate
Electric (manual) flat gate
The company's main products are: automatic conveyor, bucket elevator, screw conveyor, belt conveyor, slat conveyor, FU drag chain conveyor, bucket conveyor, crusher and all kinds of manual, electric, pneumatic gate valves, slag silo and so on.
PRODUCT DESCRIPTION
Electric (manual) flat gates are industrial devices used primarily for controlling the flow of materials in conveying systems. These gates are designed to provide reliable on/off control, ensuring efficient material handling and process management. They are commonly used in applications where precise control and sealing are required.Electric flat gates operate using an electric actuator that controls the movement of a flat gate mechanism. The gate slides horizontally or vertically to open or close the passage, allowing or blocking the flow of materials. In manual versions, the gate is operated by a handwheel or lever, which moves the gate through a system of gears or screws.
The key features of their operation include:
• Sealing Capability: The flat gate provides a tight seal when closed, preventing material leakage.
• Controlled Movement: The gate can be precisely controlled to open or close gradually or fully, depending on the process requirements.
• Automated Operation: Electric versions can be integrated into automated systems, allowing remote control and synchronization with other equipment.
●Tseriesvalves,andgatemaintechnicalparameter table
|
Type |
Machine size |
Capacity |
Effective working area |
|||
|
Valve |
Slide gate |
|||||
|
Pneumatic |
TQFZ25/45° |
TQF25/36° |
TQF25/45° |
TQZ25 |
50 |
250×250 |
|
TQFZ30/45° |
TQF30/36° |
TQF30/45° |
TQZ30 |
100 |
300×300 |
|
|
TQFZ35/45° |
TQF35/36° |
TQF35/45° |
TQZ35 |
200 |
350×350 |
|
|
TQFZ40/45° |
TQF40/36° |
TQF40/45° |
TQZ40 |
300 |
400×400 |
|
|
Electric |
TQFZ25/45° |
TQF25/36° |
TQF25/45° |
TQZ25 |
50 |
250×250 |
|
TQFZ30/45° |
TQF30/36° |
TQF30/45° |
TQZ30 |
100 |
300×300 |
|
|
TQFZ35/45° |
TQF35/36° |
TQF35/45° |
TQZ35 |
200 |
350×350 |
|
|
TQFZ40/45° |
TQF40/36° |
TQF40/45° |
TQZ40 |
300 |
400×400 |
|
|
Manual |
TQFZ25/45° |
TQF25/36° |
TQF25/45° |
TQZ25 |
50 |
250×250 |
|
TQFZ30/45° |
TQF30/36° |
TQF30/45° |
TQZ30 |
100 |
300×300 |
|
|
TQFZ35/45° |
TQF35/36° |
TQF35/45° |
TQZ35 |
200 |
350×350 |
|
|
TQFZ40/45° |
TQF40/36° |
TQF40/45° |
TQZ40 |
300 |
400×400 |
|
●Themaintechnicalparameterofslide gate
Special plate gate buried scraper conveyor can be designed according to user requirements and site conditions manual type, pneumatic or electric.
|
|
A min |
A max |
B min |
B max |
A×B max |
Maximum load |
L |
W |
D |
|
Light type |
150 |
630 |
150 |
630 |
0.25m2 |
1KN |
2A+270 |
B+106 |
155 |
|
normaltype |
200 |
1500 |
200 |
1500 |
1m2 |
3KN |
2A+301 |
B+160 |
155 |
|
bin type |
300 |
750 |
200 |
750 |
0.5m2 |
4KN |
2A+419 |
B+222 |
183 |
Video

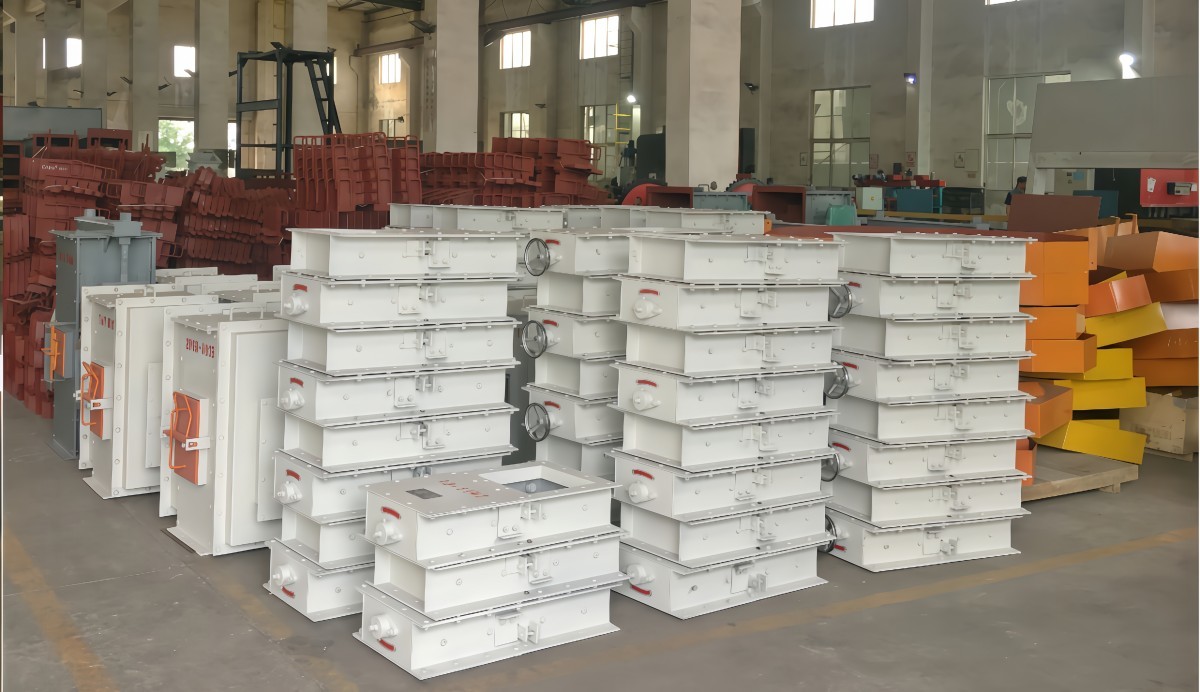

WORKSHOP
