What Is A Z-Type Bucket Elevator? They Excel in Horizontal Transport & Vertical Lift
Author :
Low Bulk Material Waste, High Efficiency: The Advantage of Z-Type Bucket Elevators

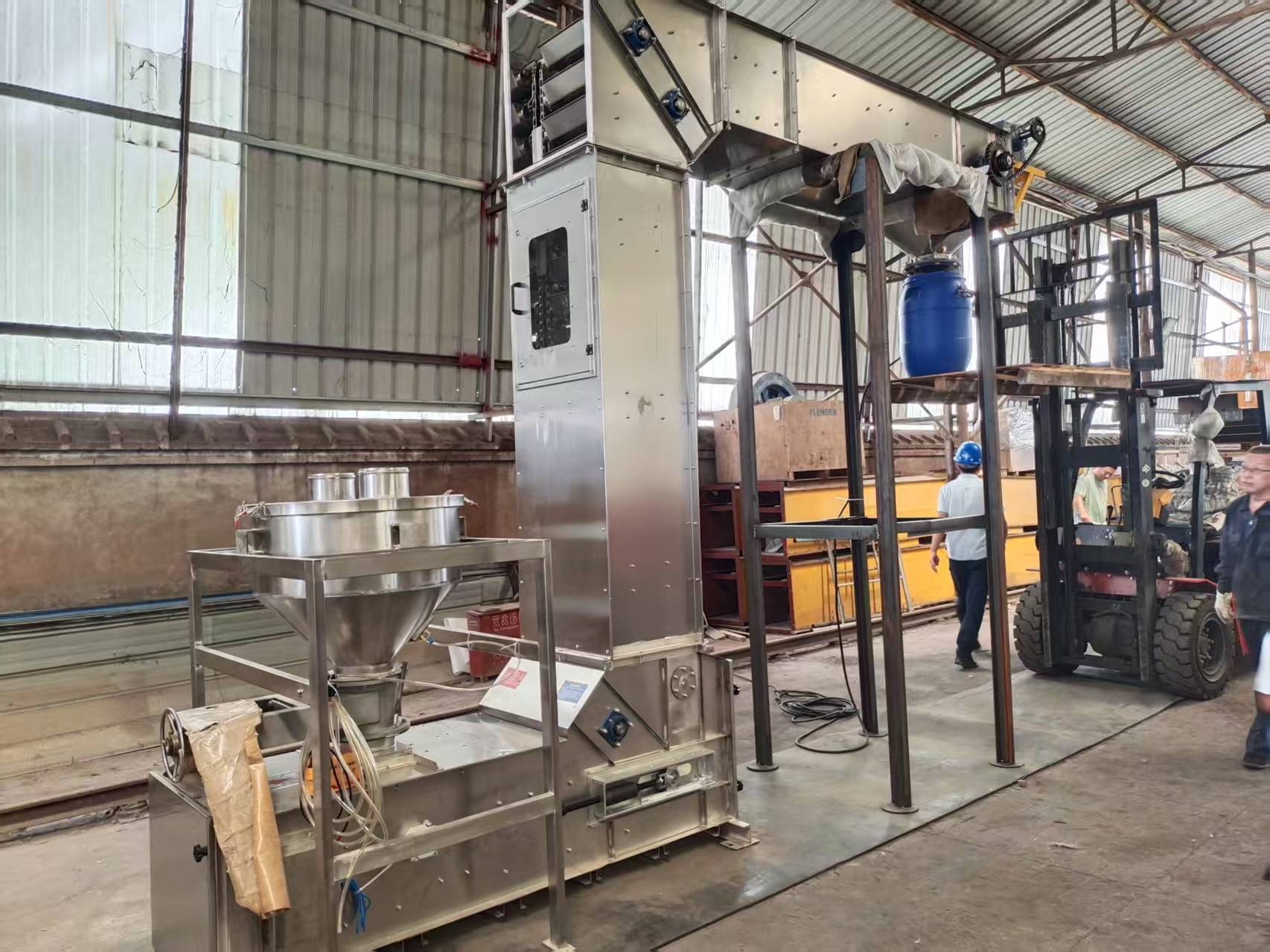

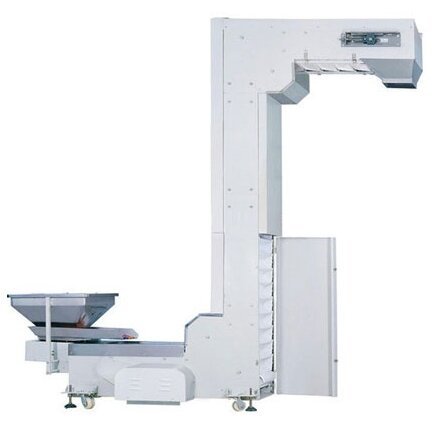

A Z-type bucket elevator is unique conveying equipment that integrates both horizontal and vertical conveying. It is one of the leading technologies in space adaptability, material protection, environmental friendliness, operational stability, and flexibility of customization, giving it the potential for an innovative solution regarding the bottlenecks of conventional conveying in challenging working conditions.
Structural Features
• Various Material Options for Buckets: The made buckets have various material options, such as carbon steel, stainless steel, PP, and ABS, for different industries. For instance, in the food industry, food-grade PP and SUS304 stainless steel are used to make the buckets to ensure that no contamination occurs to the material.
• Enclosed Housing: Since the entire machine is enclosed, it ensures minimal material and dust leakage during operation, thus complying with environmental norms.
• Modular Design: It can be customized to any height from 3-50 meters and angles from 30°-90°. Horizontal length and lifting height can also be chosen. The arrangement is flexible and space-efficient. It can pass through obstacles like factory beams and pipes since it saves space.
Working Principle
Material fills the bucket through the feed opening and is elevated to the top by the conveying chain. It flips downward over the top wheel and discharges into the receiving trough. The driving belt usually is a rubber belt that resides on the upper or lower drive pulley and the upper or lower deflection pulley. A chain-driven Z-type bucket elevator generally has two parallel drive chains. Each chain connects to a pair of drive chain wheels at the top or bottom and a pair of deflection chain wheels at the bottom or top.
Advantages
The specific advantages can be divided into the following categories:
Ⅰ. High Space Utilization and Flexible Layout for Complex Scenarios
The Z-type bucket elevator is designed with this as its greatest asset; the "Z" shape structuring adapts to any type of site.
• Obstacle Bypass Design: The design integrates horizontal conveying and vertical conveying, so horizontal conveyors will not be needed. Obstacles, such as beams, pipes, or factory equipment, can be easily bypassed, allowing layouts to be facilitated even with site limitations.
• Small Footprint: In contrast to the separation in "horizontal conveyor+vertical elevator," the Z-type machine integrates two conveying functions. The footprint gained overall shall be between 30% and 50%, especially advantageous in workshops where space and height constraints exist (lifting height can be customized from 3 to 50 meters, and horizontal length adjustment will be as needed).
• Convenient Multi-point Inlet and Outlet: A single machine supports multi-point feeding (consolidating materials from different production lines) and multi-point discharging (distributing the same material to multiple subsequent processes). Additional material distribution equipment is not needed, therefore simplifying the process flow.
Ⅱ. Low Material Damage Rate, Suitable for "Fragile/Damage-prone" Materials
The Z-type bucket elevator reduces material friction and impact structurally for such materials as granulates, blocks, or fragile materials such as food particles, plastic particles, and chemical crystals.
• Flow-in Feeding: In this system, materials flow automatically into the bucket from the feed opening. It avoids the "scraping" feeding method used by traditional elevators, avoiding rigid friction between the material and equipment housing or edges, hence reducing breakage rates.
• Smooth Flipping Discharge: When the bucket reaches the top with the chain/belt, it smoothly flips over in a guided motion from the top wheel to discharge the material without a violent impact. This is especially suitable for materials having high concerns regarding the appearance and integrity of the material, such as puffed food and precision chemical particles, thus keeping the scrap rate at a very low level.
• Customized Buckets: Buckets are available for selection according to the characteristics of materials, such as shallow buckets (for powdery materials to avoid accumulation), deep buckets (for bulky materials to hold), and buckets with guide edges, which minimize material loss in conveying.
Ⅲ. Excellent Sealing Performance, Meeting Environmental and Cleanliness Requirements
In heavy dust conditions or even in cases where the materials handled are likely to cause pollution or the cleanliness requirements are high, such as in pharmaceuticals, food, and chemicals, the design seal of the Z-type bucket elevator is very effective:
• Complete Housing Enclosure: The proceeding is completely housed; only the feed and discharge openings are left open, whereby their corresponding flexible connections seal off; hence, no dust is allowed to leak during conveying. This reduces dust in the workshop and minimizes the risk of respiratory diseases among the workers due to contamination and reduces entry into the material by external contamination. In fact, it meets the cleanliness requirement of GMP in food and pharmaceutical processing.
• Material Leakage Prevention Structure: The contact areas of the chain/belt with the housing are provided with wear-resistant seals to contain material leakage through gaps. Some of the models are also provided with a "bottom cleaning port" to remove small quantities of would-be accumulated dust and keep the interior of the equipment clean.
Ⅳ. Stable and Reliable Operation, Low Maintenance Cost
• Durable Drive System: Most units drive on high-strength chain technologies (military-grade wear-resistant chains) or food-grade rubber belt chain technologies. The fatigue strength of the drive system could be expected to last about 100,000 hours or longer under certain working conditions. The drive chain wheels or pulleys are manufactured under heat treatment to minimize wear and reduce the frequency of failure occurring in the drive system.
• Modular Design: The major components of the equipment, such as the horizontal section, vertical section, buckets, and drive unit, are assembled in a modular way. Maintenance interventions at a later stage could be easily carried out by replacing of single modules, such as the replacement of buckets or the reparation of the drive unit, without any interference with the main part of the machine. Therefore, this would not call for any additional downtimes related to maintenance.
• Low-energy Operation: Compared to what has been defined for "multi-equipment combination conveying,"the Z-type machine requires only one driving system, making its energy consumption levels between 20% and 30%lower than what is traditionally needed in combined options. Moreover, the machine operates without excessive impacts and generates low levels of noise (generally ≤75dB), further improving the working environment in the workshop.
V. Wide Application Range and Strong Compatibility
The Z-type bucket elevator has a wide parameter range that can be adjusted according to different applications and hence can fulfill the requirement of diverse industries:
• Materials Options: The buckets and casing material, which are industry-specific, such as carbon steel, general industrial application, SUS304/SUS316 stainless steel for food, pharmaceutical application, and corrosion-resistant, PP/ABS plastic lightweight and corrosion-resistant materials made are compliant with industry material standards.
• Diverse Material Compatibility: It can convey loose materials (such as flour and cement powder), granular materials (such as rice and plastic particles), and small blocky materials (such as coal lumps and crushed ore,with controlled particle size) It can also handle materials with a certain level of humidity (such as materials with a moisture content of≤15%,and some models can be treated for water resistance).
• Adjustable Parameters: The conveying speed (generally 0.5-2 m/s) and lifting capacity (3-60 m³/h) can be adjusted according to production needs, making it suitable for both small and medium-sized production lines and large industrial projects.
Summary
The integrative value proposition of Z-type bucket elevators includes "integrative conveying" for spatial solutions, "low-damage design" for optimal product quality, "high sealing + high customization" for versatile industry needs-giving due regard to operational stability and low maintenance cost. That makes it the preferred equipment in the so-called "complex conveying conditions" for food, pharma, chemicals, agro, and mining industries.
